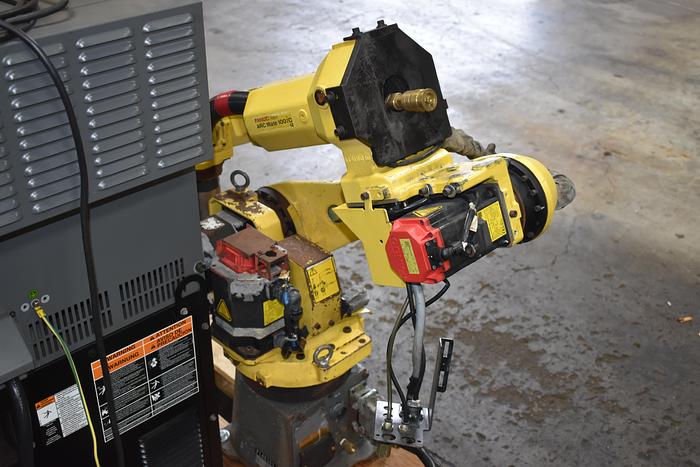

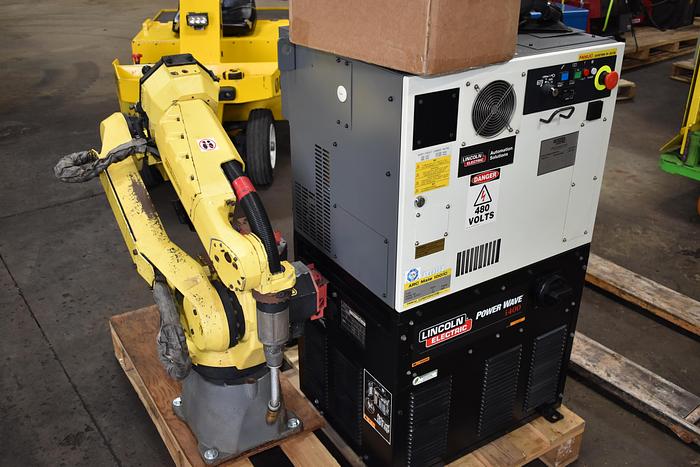

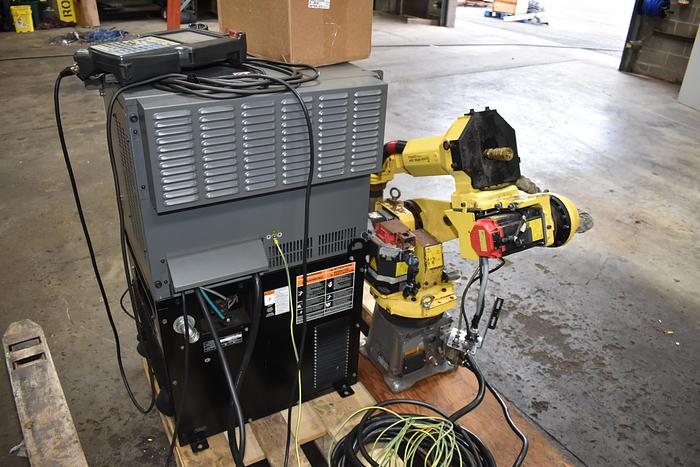

FANUC Arcmate 100ic/12 Industrial Welding Robot with R30ib Controller and Lincoln Powerwave i400

No longer available
FANUC Arcmate 100ic/12 Industrial Welding Robot with R30ib Controller and Lincoln Powerwave i400
$22,500 (USD)
Location:Warren, OH
Description
FANUC Arcmate 100ic/12 Industrial Welding Robot with R30ib Controller and Lincoln Powerwave i400 - Will Be Refurbished
Robot shall be tested and complete cables and teach pendant
Final inspection and runoff available prior to shipping
Integration available for additional fees
Will load truck at no additional fee
Robot Motion Speed
J1 230 °/s (4.01 rad/s)
J2 225 °/s (3.93 rad/s)
J3 230 °/s (4.01 rad/s)
J4 430 °/s (7.50 rad/s)
J5 430 °/s (7.50 rad/s)
J6 630 °/s (11.00 rad/s)
Robot Motion Range
J1 - 340°
J2 - 250°
J3 - 445°
J4 - 380°
J5 - 380°
J6 - 720°
Specifications
Manufacturer | FANUC |
Model | Arcmate 100ic/12 |
Condition | Refurbished |
Payload | 12 KG (26.45 lbs) |
Reach | 1420 MM (55.90 in) |
Repeatability | ±0.08mm (.0031 in) |
Robot mass | 130 KG (297 lbs) |
Structure | Articulated |
Controller | R30ib |
